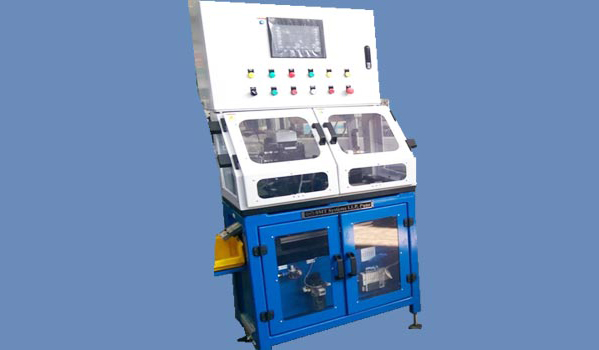

Bore Measurement Machine

Description

• Measuring machine for bore measurement and control
• Auto component loading; auto measurement and auto unloading
• Other size machine models can be developed on request)
• Parameters being checked: Diameter (in two different planes), Ovality (out of roundness) and Taperness
• Component is under rotation while measurement
• Cycle time: 3 sec, 5 sec and 8 sec respectively
• Measuring system resolution: 0.1 µ and repeatability within 1 µ
• Various component sizes within permissible range can be handled by resetting the machine using change tooling
